产品介绍

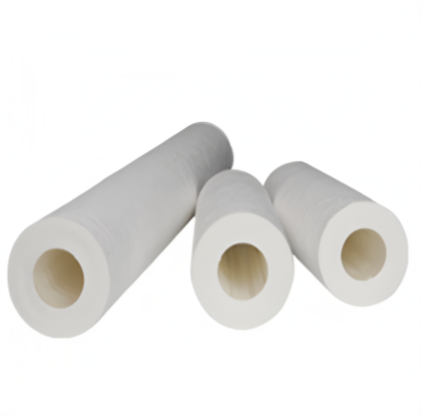

滤芯
通过孔径较小的滤网或滤膜，过滤掉水中的悬浮颗粒、泥沙、铁锈等固体杂质，并可以去除部分有机物质。它对杂质具有较好的去除效果，能够显著提升水质
Through filter screens or filter membranes with small pore sizes, it filters out solid impurities in water such as suspended particles, sediment, and rust, and can remove some organic substances. It exhibits good removal efficiency for such impurities and can significantly improve water quality.
| 工序类型 Process Type | 过滤精度范围 Filtration Precision Range | 目的 Purpose |
|---|---|---|
| 电镀（铜/镍） Electroplating (Copper/Nickel) | 0.1~1um | 防止颗粒导致镀层针孔、麻点 Prevent pinholes and pitting in the coating caused by particles |
| 显影/去膜Developing/Stripping | 0.5~2um | 去除干膜渣，避免显影不彻底 Remove dry film residues to avoid incomplete development |
| 蚀刻 Etching | 1~3um | 过滤蚀刻渣，防止喷嘴堵塞 Filter etching residues to prevent nozzle clogging |
| 清洗水 Washing Water | 1~5um | 去除残留杂质，避免基板污染 Remove residual impurities to avoid substrate contamination |
产品特性product feature
- 导电性能强
High electrical conductivity - 具有较强的耐磨性、弹性、结构强度，能适应各种PCB产品
It possesses high wear resistance, elasticity, and structural strength, and can accommodate a wide range of PCB products. - 精度高High Precision
- 耐温性、耐腐蚀性、抗湿性
Temperature Resistance，Corrosion Resistance，Moisture Resistance
