产品介绍

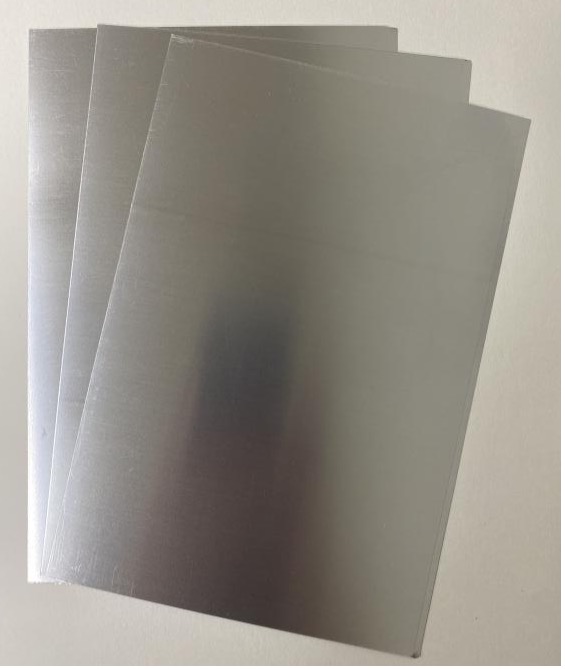

润滑铝片
产品型号 Product model
IDS110/IDS140/ID160/ID180/ID190/ID200/ID230
厚度 Thickness
0.11mm~0.23mm
用途 Product use
IC载板、BGA、HDI、软板，软硬结合板、高多层板，孔径0.075mm及以上的小孔径等高端产品
High-end products such as IC substrates, BGA, HDI, flexible boards, rigid-flex boards, high-layer-count boards, and small apertures with a hole diameter of 0.075mm or larger.
尺寸 Standard Size
特殊尺寸可定制。
Can be cut according to customer requirements.
| Item 项目 | Properties 特性 | Remark |
|---|---|---|
| Structure 结构 | Al layer + Lubricant layer 铝 + 润滑剂 | Multi-layer 多层 |
| Al material 铝 | Al alloy 铝合金 | Purity 99% ↑ 99%纯铝 |
| Lubricant 润滑剂 | Water-soluble 水溶性 | |
| Melting point 溶点 | 65~ 70°C | Do not allow to contact with high temperature Keeping with care 避免和高温接触, 小心存放 |
| Appearance 表面 | milky white 乳白色 | |
| Resisting 抗阻性(water/solvent/humidity) | Low 低 | The NH sheet becomes tacky, when it came in contact with water and organic solvent Keeping with care 当接触水, 溶剂等, 会变黏. 小心存放 |
产品特性product feature
- 有效改善孔壁质量。
Effectively improve the quality of the pore wall. - 具有良好的散热性、润滑性。
Good heat dissipation and lubricity. - 能在钻针下钻过程时提供定位导向功能， 提升钻孔孔位精度。
It can provide the positioning and guidance function during the process of drilling needle running down, and improve the accuracy of the drilling hole position. - 具有良好的导热功能，能迅速消散钻头高速下钻孔时因摩擦产生的热量，有效防止钻头过热，减少钻针磨耗，从而提高钻针使用寿命，降低断针率。
With good heat conduction function, it can quickly dissipate the heat generated by friction when the drill bit is running down at high speed, effectively prevent the drill bit from overheating and reduce the wear of the drill needle, so as to improve the service life of the drill needle and reduce the rate of needle breakage.
