产品介绍

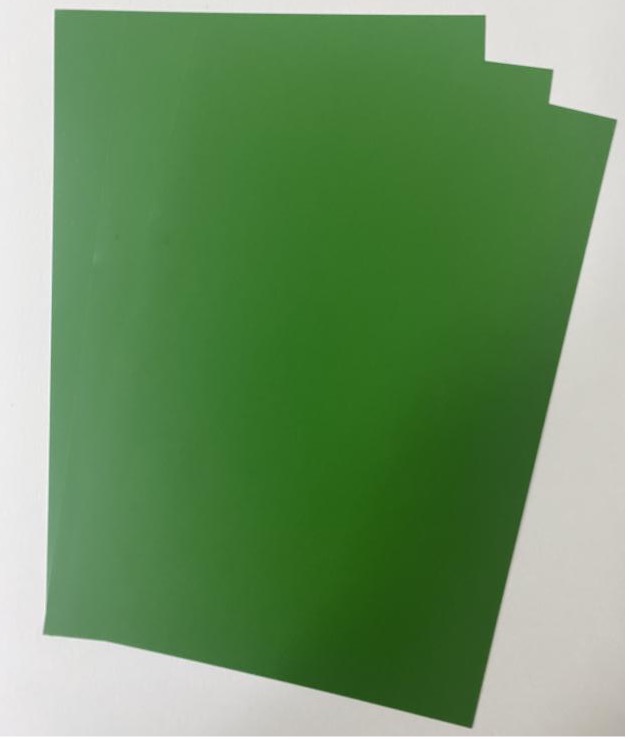

涂层铝片
产品型号 Product model
TC140/TC180/TC200
厚度 Thickness
0.14mm&0.18mm&0.20mm
产品结构 Product structure
特殊尺寸可定制。
Can be cut according to customer requirements.
用途 Product use
适用0.075mm及以上的小孔径钻孔，用于汽车板、通讯板等高品质、高可靠性板。
Suitable for small aperture drilling with a diameter of 0.075mm and above, and applicable to high-quality, high-reliability boards such as automotive boards and communication boards.
尺寸 Standard Size
特殊尺寸可定制。
Can be cut according to customer requirements.
| 产品型号 Model | 铝片厚度 (mm) AL Thickness | 涂层厚度 (mm) Coating Thickness | 总厚度 (mm) Overall Thickness | 尺寸规格 Size | 适配 PCB 板材类型Applicable PCB Types |
|---|---|---|---|---|---|
| TC140 | 0.10±10% | 0.04±0.01 | 0.14±10% | 可根据客户需求裁切定制 Custom cutting available per customer requirements | HDI 板、汽车电路板、通讯电路板等 HDI boards, automotive PCBs, communication PCBs, etc. |
| TC180 | 0.13±10% | 0.05±0.01 | 0.18±10% | 可根据客户需求裁切定制Custom cutting available per customer requirements | HDI 板、汽车电路板、通讯电路板等HDI boards, automotive PCBs, communication PCBs, etc. |
| TC200 | 0.10±10% | 0.10±0.01 | 0.20±10% | 可根据客户需求裁切定制Custom cutting available per customer requirements | HDI 板、汽车电路板、通讯电路板等HDI boards, automotive PCBs, communication PCBs, etc. |
产品特性product feature
- 能在钻针下钻过程时提供定位导向功能， 有效提升钻孔孔位精度，配合钻针的刃长，可有效增加钻孔叠板层。
It can provide the positioning and guidance function when the drill needle is in the process of drilling, effectively improve the accuracy of the drilling hole position, and cooperate with the blade length of the drill nozzle to effectively increase the drilling laminated layer. - 有效降低断针发生率。
Effectively reduce the incidence of needle breakage. - 表层为环氧树脂涂层，可在DESMEAR阶段被有效清除，不用担心孔内残留，因此不存在粘附孔壁进而导致孔铜分离风险。
The surface layer is epoxy resin coating, which can be effectively removed in the desmear stage without worrying about the residue in the hole, so there is no risk of sticking to the hole wall and causing the separation of hole copper. - 表面涂层物性稳定，不受环境影响，便于存储与运输。
The surface coating has stable physical properties is not affected by the environment convenient to store and transport.
