产品介绍

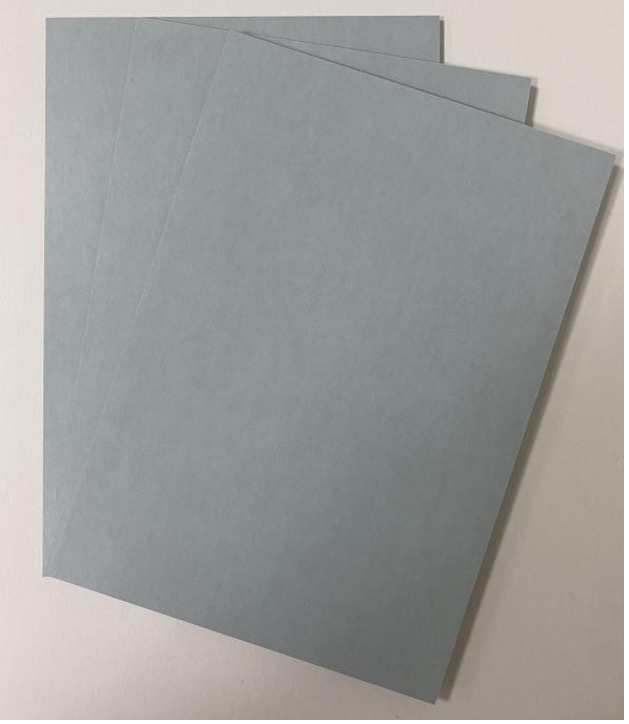

密胺垫板
产品型号 Product model
GS200/GS260
厚度 Thickness
2.0mm/2.60mm
产品结构 Product structure
特殊尺寸可定制。
Can be cut according to customer requirements.
用途 Product use
适用于0.10mm及以上的孔径钻孔， 用于高多层、HDI、通讯板、汽车板等
Suitable for drilling holes with a diameter of 0.10mm and above, used for high multi-layer, HDI, communication board, automotive board, etc.
尺寸 Standard Size
特殊尺寸可定制。
Can be cut according to customer requirements.
| Product name 产品名称 | Model 产品编号 | Instructions 说明 | Size 尺寸 | Appearance 外观 |
|---|---|---|---|---|
| 密胺垫板 Melamine Drill Board | GS260M | 厚度公差(Thickness Tolerance)：2.60±0.15mm； 密度（Density）：880±30kg/m3； 硬度(Hardness)：80±5（Shore-D）； 吸水率（Water Absorption）:3%～4%; 翘曲度(Warpage)：≤ 0.6 %(对角线长度)。 | 37"*49"；41"*49"；43"*49"； 特殊尺寸可定制。 Special sizes can be customized. | 平整，无凹坑，凸点等表面缺陷，允许有轻微色差。Smooth, without surface defects such as pits, bumps, etc., with slight color differences allowed |
产品特性product feature
- 相比普通垫板，硬度高，能有效抑制底板披锋。
Compared with ordinary backup, it has high hardness and can effectively prevent the base plate burr. - 相比酚醛垫板，可延长钻针使用寿命。
Compared to phenolic backup, it can prolong the service life of drill needles. - 性价比高，可替代部分酚醛垫板。
High cost performance, can replace some phenolic backup.
