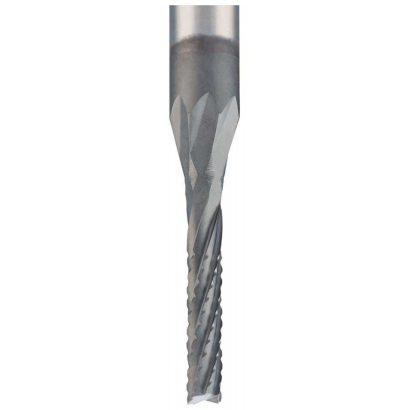

GCT Diamond Coating Router – Type 1750


Category: .

Routing of inner and outer contours as well as for de-paneling of assembled PCB.

Ideally suited for laminate with ceramic fillers and high Tg material ≥ 200°C
such as RO4xxx, Arlon 25x, Isola IS 620.

Very high dimensional accuracy and process capability due to extreme rigid
geometry and thicker diamond coating.

Introduction

Applications / Advantages:

  • Routing of inner and outer contours as well as for depaneling of assembled PCB
  • Ideally suited for laminate with ceramic fillers and high Tg material ≥ 200°C such as RO4xxx, Arlon 25x, Isola IS 620
  • Very high dimensional accuracy and process capability due to extreme rigid geometry and thicker diamond coating

Specification

Type 1750:

  • Thicker diamond coating
  • Right hand cutting, right twisted (up cut)
  • Fishtail cut
  • Shank Ø 3.175mm
  • Overall length 38.10mm
  • Tolerances according to GCT router specification
  • Made of solid carbide

Type 1760 on request:

  • Right hand cutting, left twisted (down cut)
  • Further data as per type 1700
  • Not available in all Ø
